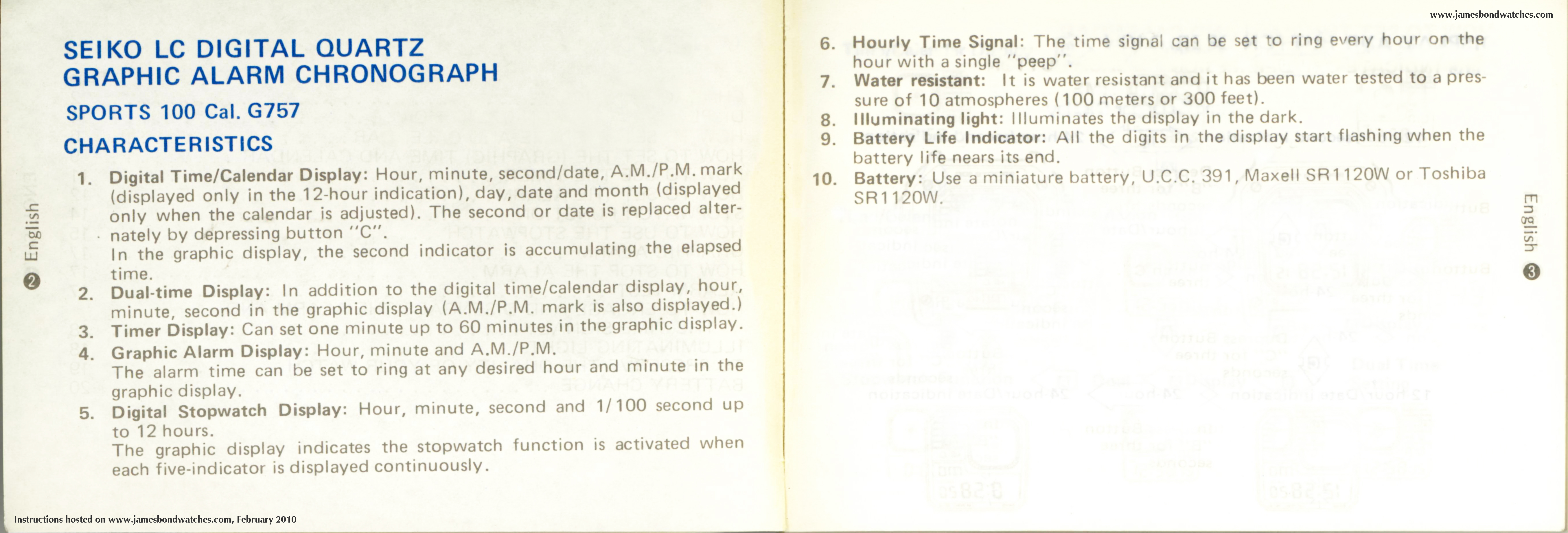

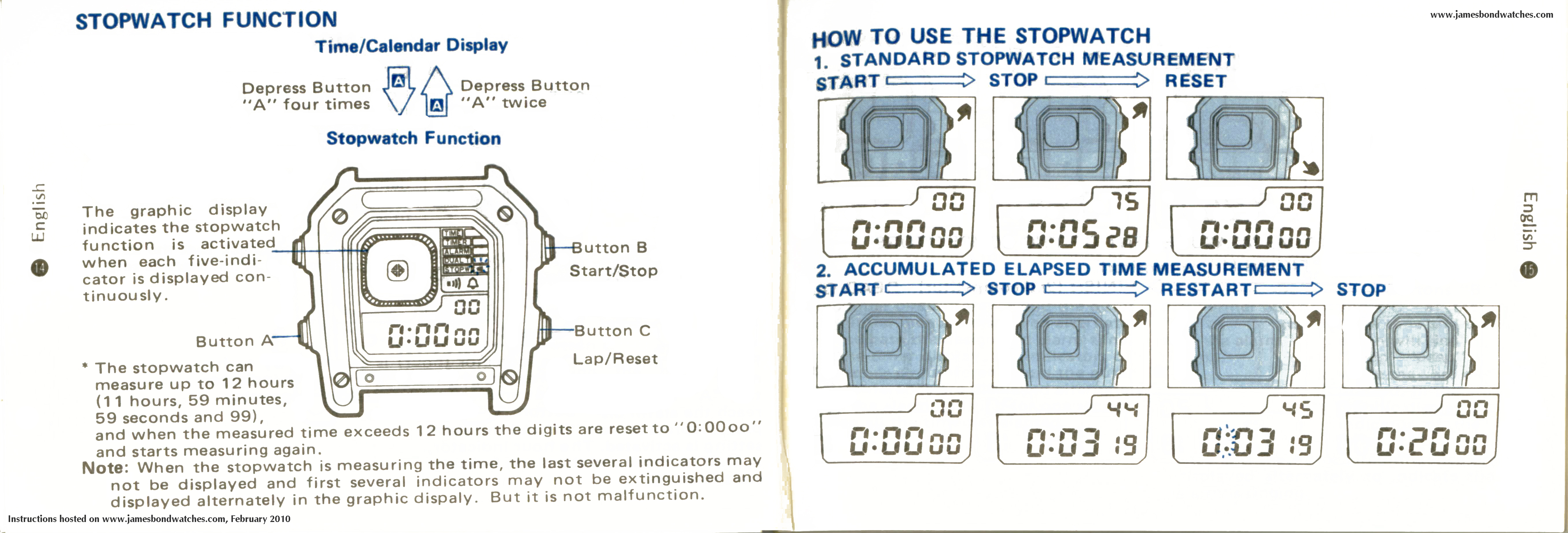

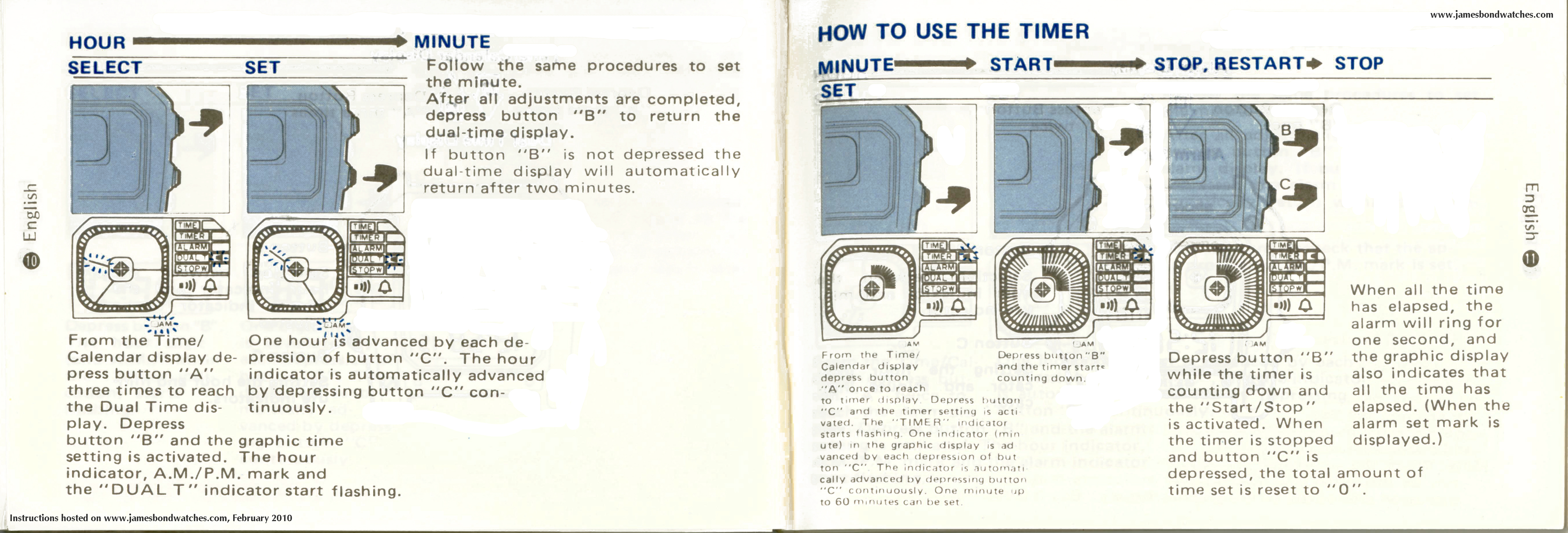

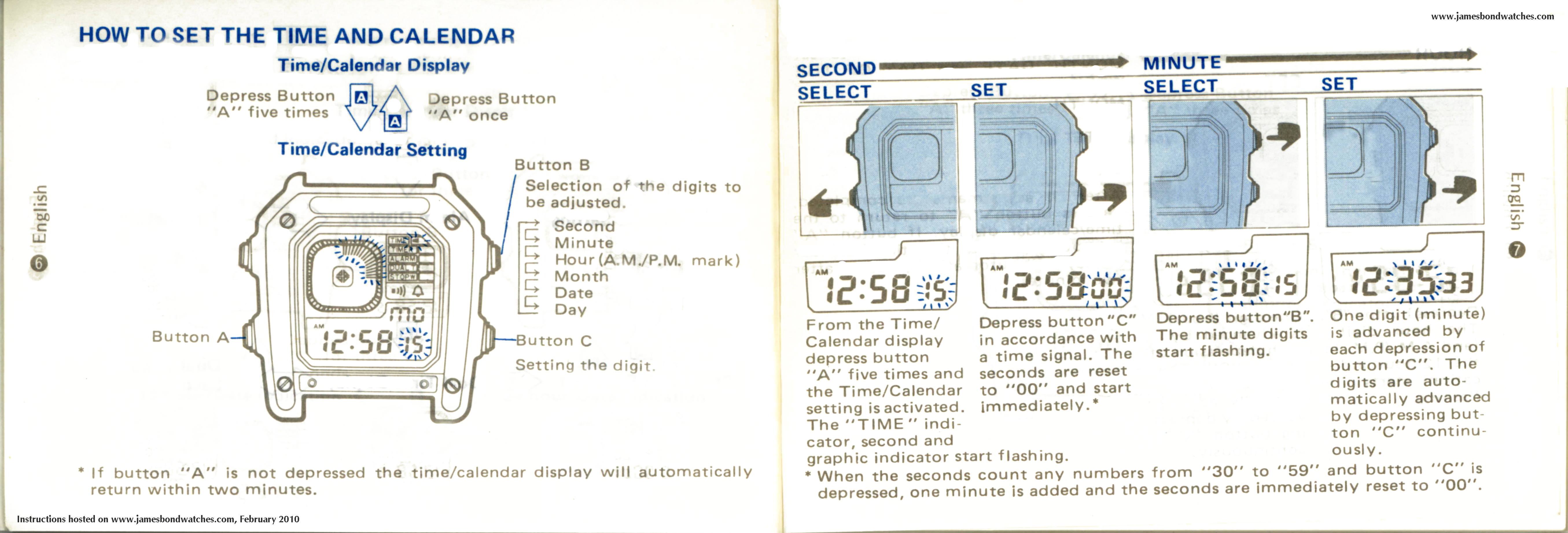

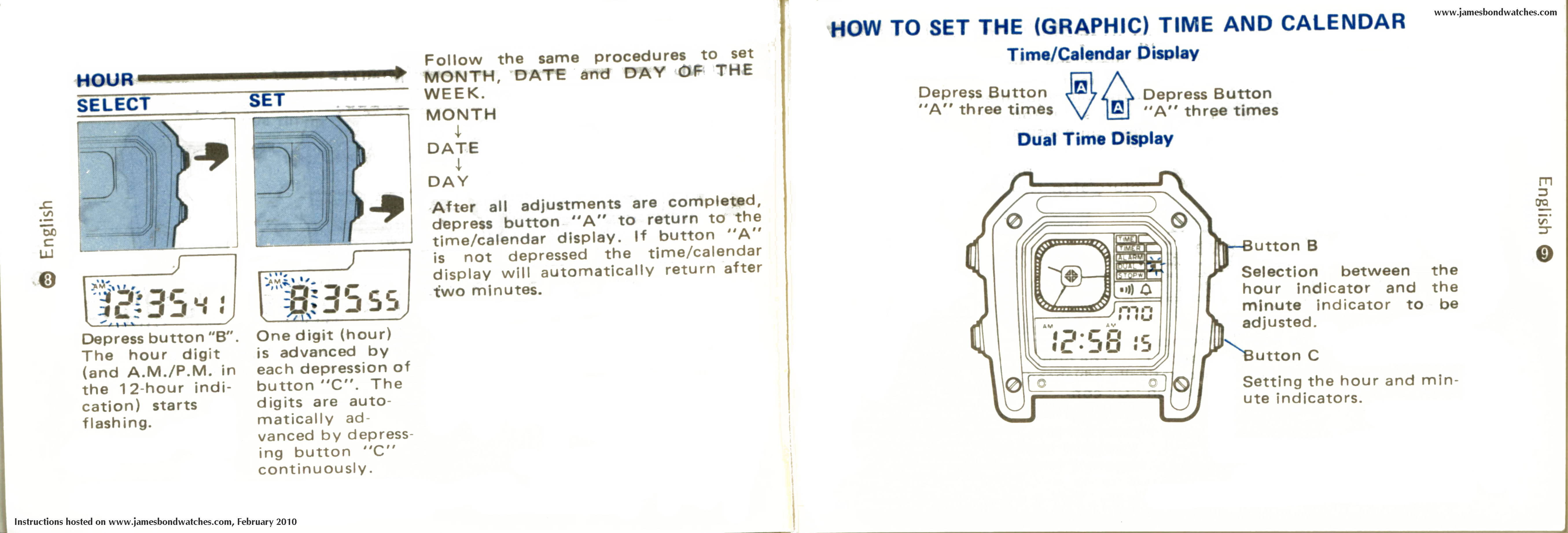

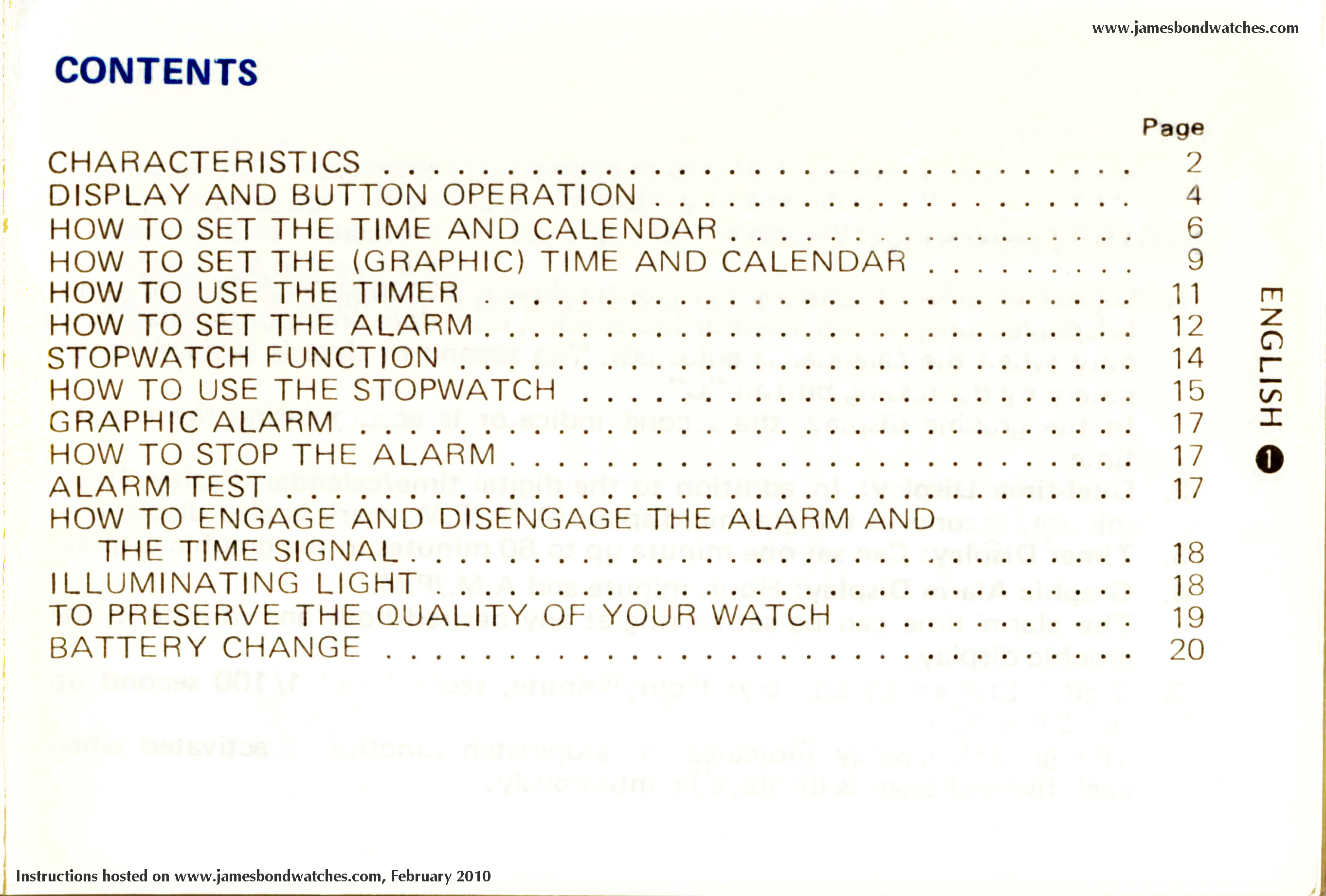

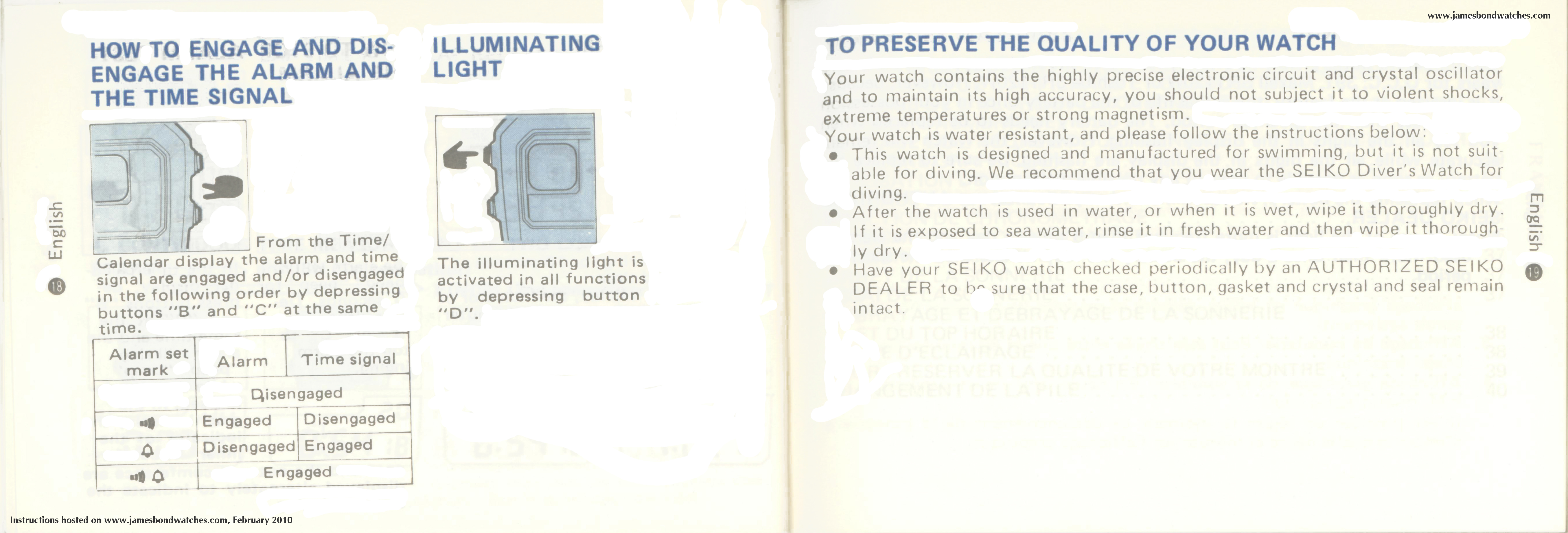

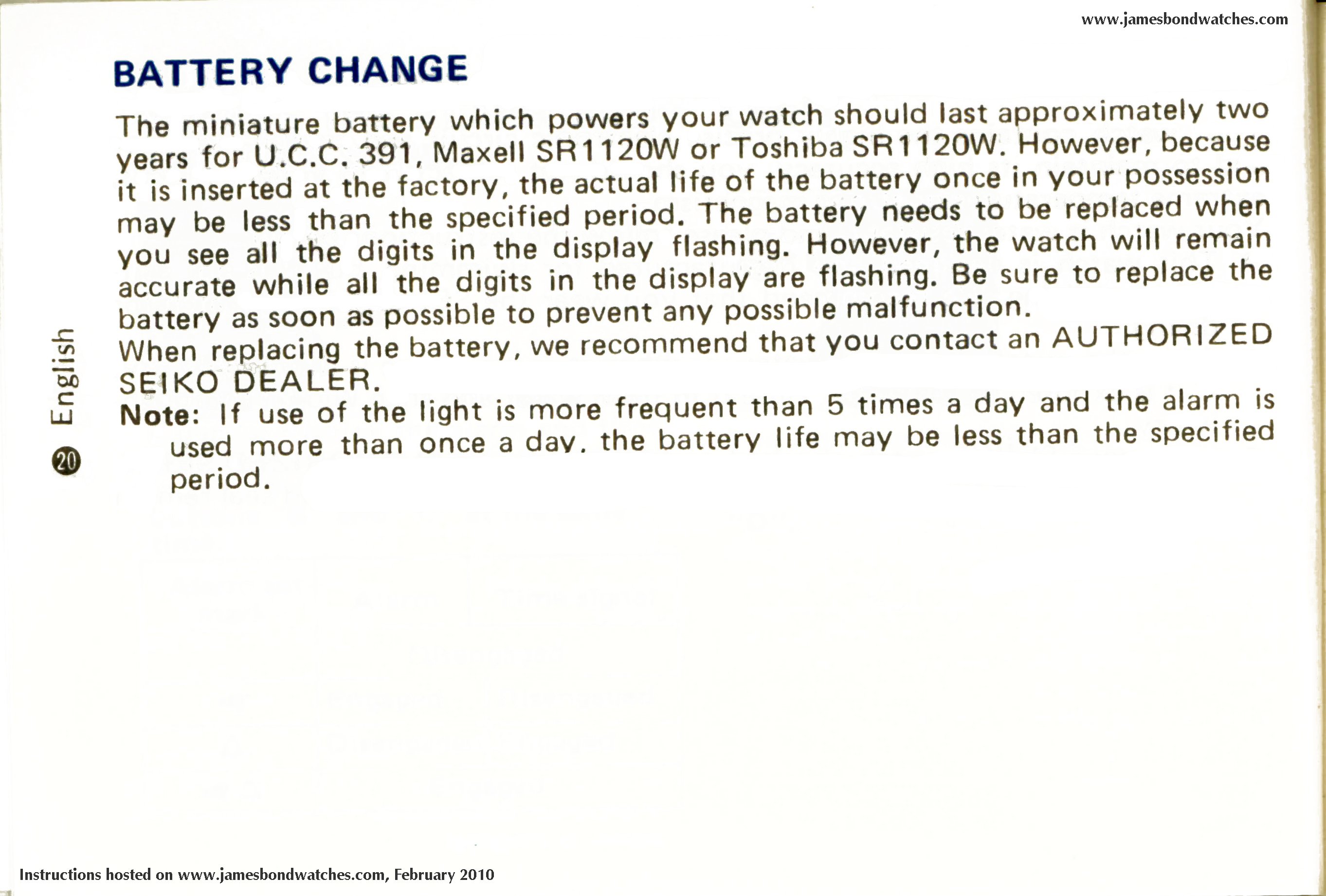

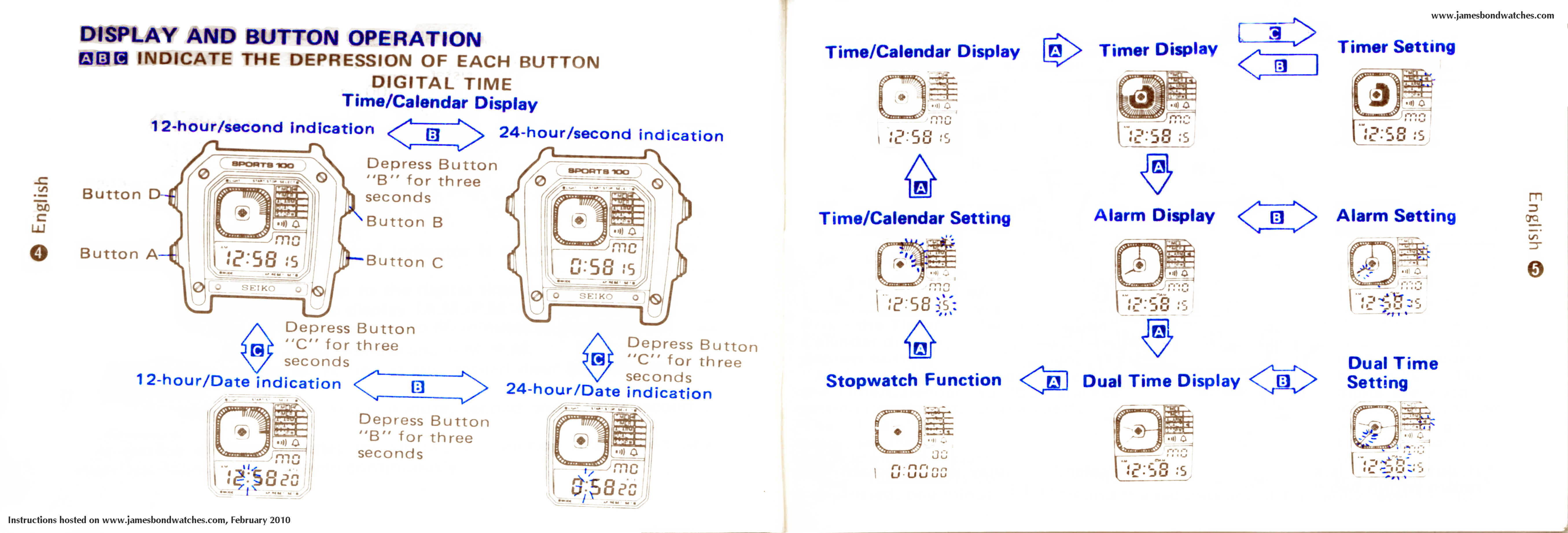

Each of the twenty total pages, plus front and back covers, can be seen as a thumbnail at left; click on each to see it at full resolution (suitable for reading and reference). Note that some of these are single pages, others in two-page spreads.
This booklet is also available in *.pdf format, which is linked below.
Calibre number G757-5020, model WLK005
As of September 2009, James Bond Watches was the first (and we believe exclusive) source to confirm directly from SEIKO the case / calibre and model number of the watch type they provided for actor Roger Moore to wear as James Bond in Octopussy.
SEIKO describes its G757 watch series as follows:
Continuous readout in hours on 12 or 24 hour basis, minutes, seconds, day and AM/PM. In time mode, Graphic Display indicates seconds display in synchronization with digital readout. In countdown mode, graphic display shows minutes and seconds remaining in a preset period up to 60 minutes.
In chronograph mode, graphic display indicates running chronograph. Chronograph records hours, minutes, seconds and 1/100th seconds up to 12 hours with lap time capability. Alarm can be set to ring daily at any designated AM or PM time. Digital hands, time, alarm, stopwatch, countdown timer, hourly chime, backlight.
Click here for complete *.pdf version of SEIKO G757 watch instructions.
